Veracity – LONGSPAN MAX XT

LONGSPAN Max XT camera provides maximum POE power and network distance capability in a robust external weatherproof housing.

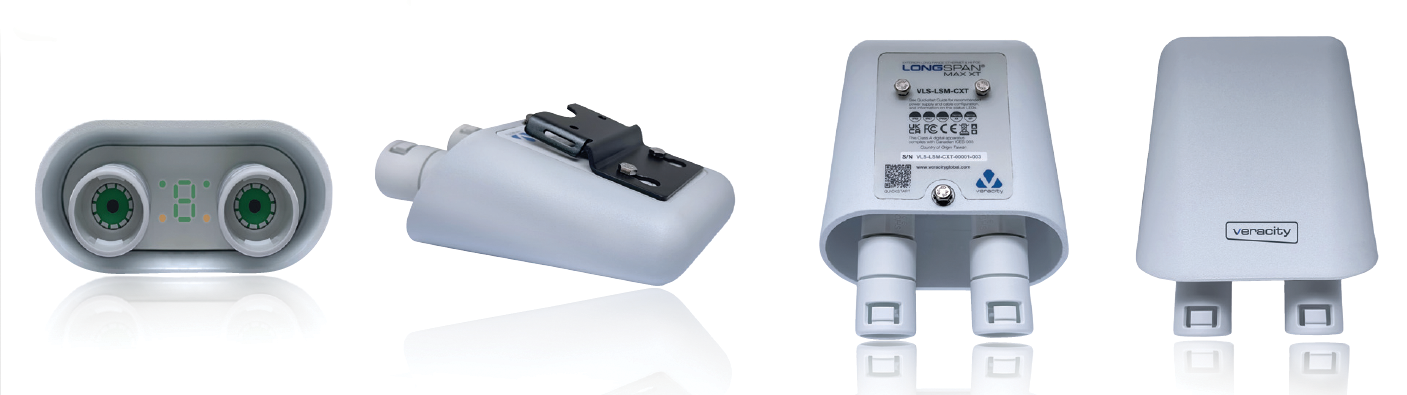

Robust weatherproof housing with integrated SAFEVIEW diagnostics display

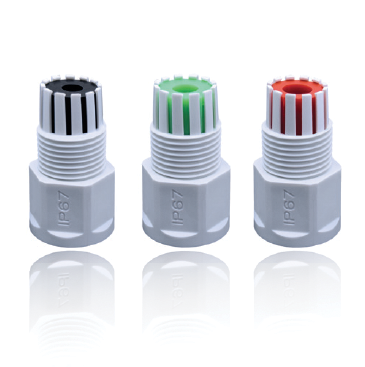

The XT package includes three different compressible glands (black, green and red as above), for different network cable diameters, to ensure a tight seal.

LONGSPAN Max XT has been designed to provide a reliable external housing solution at the camera end for any LONGSPAN connection and is compatible with any LONGSPAN Base unit. However, to achieve higher POE power delivery, it must be used with a LONGSPAN Max Base or Base 8 device.

分類:

商品說明

Features

  • External version of LONGSPAN Max® camera
  • Long range point-to-point Ethernet over Cat5e or Cat6 cable
  • Unrestricted 100Base-TX with POE up to 820 metres
  • Delivers 60W at 250 metres, 40W at 390 metres
  • Sleek IP66/67/69 & Nema 4X/6 rated housing and cable glands
  • Smart POE power and diagnostic display for reliable installation
  • Includes wall or pole-mounting adaptor plate

產品規格手冊

Veracity_VLS-LSM-CXT_LONGSPAN_Max_XT_Datasheet_DV1.2EN
