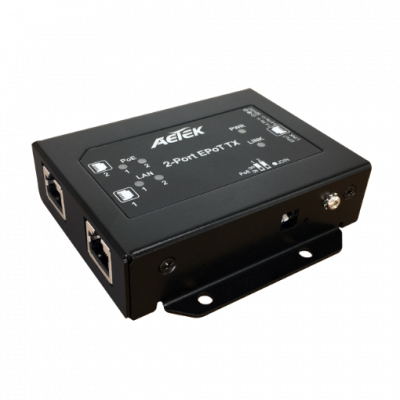

The TE12-120-TX, a 1-to-2 EPoT (Ethernet & Power over UTP/STP Cable) transmitter(TX) equipped with 1 EPoT port & 2-port PoE switch, is designed to connect 2 of remote PoE IP cameras over single UTP/STP Cable without requiring extra power supply.
This cutting-edge model delivers data and power at long range up to 500m with 25W PoE budget for 2 of PoE IP cameras remotely.
Features
– One RJ45 EPoT port & Two 10/100Mbps PoE PSE port
– Long-range IP data & PoE over 4-pair/2-pair/1-pair UTP /STP cat.5e/6 cables
– Delivers up to 25 watts@500m(1,640ft) shared between two PoE IP cameras
– Supports peer-to-peer, daisy-chain, and failover Ring topologies
– Eliminates the need for intermediate Ethernet switches & power supplies for long-range deployment
– Plug-and-Play connection
– PoE Output On/Off control
