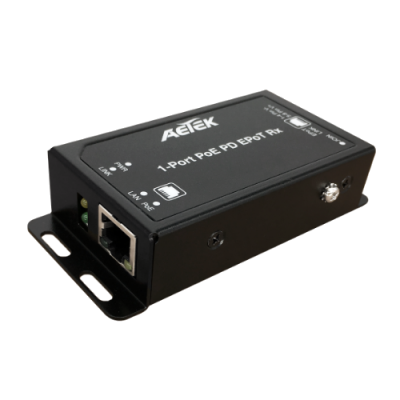

TE11-110-RX (PoE PSE site)

TE11-110-RX is an EPoT (Ethernet & Power over UTP/STP Cable) receiver(RX) equipped with 1 EPoT port & 1 PoE PD LAN port.

This cutting-edge model allows all of the power for the link to be sourced from a PoE switch or PoE injector. UPoE PSE (>=60W) is recommended for a long range PoE solution providing data & power to EPoT TX adapter and PoE IP camera over single coaxial cable up to 1,200m (3,937ft).

分類: 標籤:

商品說明

TE11-110-RX is an EPoT (Ethernet & Power over UTP/STP Cable) receiver(RX) equipped with 1 EPoT port & 1 PoE PD LAN port.

This cutting-edge model allows all of the power for the link to be sourced from a PoE switch or PoE injector. UPoE PSE (>=60W) is recommended for a long range PoE solution providing data & power to EPoT TX adapter and PoE IP camera over single coaxial cable up to 1,200m (3,937ft).

Features

– One RJ45 EPoT port & one 10/100Mbps LAN PoE PD port
– Without requiring extra power adapter
– Extends PoE to Transmitter(TX) and PoE IP camera
– Long-range IP data & PoE over 4-pair/2-pair/1-pair UTP /STP cat.5e/6 cables
– Supports peer-to-peer, daisy-chain, and failover Ring topologies
– Eliminates the need for intermediate Ethernet switches & power supplies for long-range deployment
– Plug-and-Play connection
– Optional 19’’ 8-bay rack mount chassis(CH-110)
