S2000-I

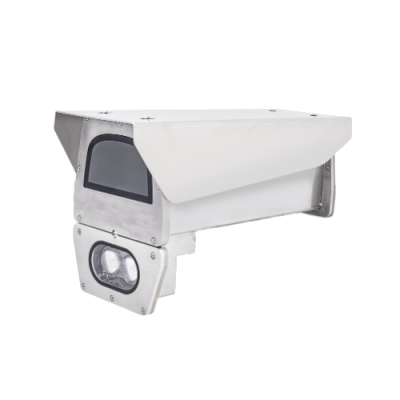

AETEK’s S2000-I camera housing constructed by AISI 316L stainless steel designed to protect IP & analog box/brick camera in highly corrosive & severe environments such as offshore, chemical, petrochemical, and tunnel areas. Besides built-in window heater & blower to preventing from ice & mist on window. S2000-I is compliant to IP68, and IK10 standards. This model is powered by 24VAC input and provides 12VDC & 24VAC output inside housing. The unparalleled built-in 12W VAIR illuminator is adjustable on beam angle by remote control thru RS485 Pelco-D command or manual dip switch to suit camera’s FOV. Furthermore, the inner capacious spaces suits camera equipped with wide angle & long distance lens.

分類: 標籤:

商品說明

AETEK’s S2000-I camera housing constructed by AISI 316L stainless steel designed to protect IP & analog box/brick camera in highly corrosive & severe environments such as offshore, chemical, petrochemical, and tunnel areas. Besides built-in window heater & blower to preventing from ice & mist on window. S2000-I is compliant to IP68, and IK10 standards. This model is powered by 24VAC input and provides 12VDC & 24VAC output inside housing. The unparalleled built-in 12W VAIR illuminator is adjustable on beam angle by remote control thru RS485 Pelco-D command or manual dip switch to suit camera’s FOV. Furthermore, the inner capacious spaces suits camera equipped with wide angle & long distance lens.

Features

– AISI 316L stainless steel construction
– Fits corrosive & severe environments
– Built-in 12W VAIR Illuminator up to 140m
– Long range of built-in 12W VAIR Illuminator up to 140m at 10°
– Wide range of built-in 12W VAIR Illuminator up to 50m at 40°
– IP68 weather rating standards
– IK10 impact rated on stainless steel outer shell
– Window heater & blower inclunded
– Supports wide-angle & long-distance remote focus lens
– Adjustable AISI 316L sunshield

產品規格手冊

S2000-I Datashet-200130
