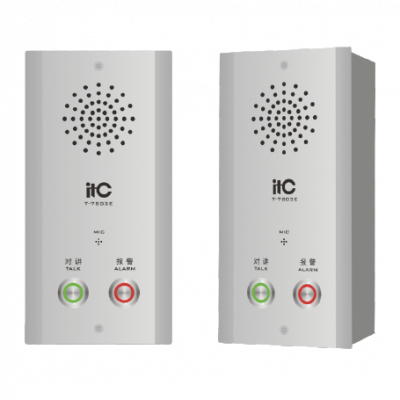

T-7803E IP Intercom Terminal

Professional network terminal for alarm and help; suitable to be installed indoor or outdoor; anti-explosion and waterproof; could communicate with duty room via 1 button and trigger alarm for selected zone via the other button

Category: Tag:

Description

Professional network terminal for alarm and help; suitable to be installed indoor or outdoor; anti-explosion and waterproof; could communicate with duty room via 1 button and trigger alarm for selected zone via the other button

Features

– Minimalist appearance, graceful lines, the enclosure is in the material of alumina, sturdy and durable; support flush mounting or open installation;
– Based on Luna cloud server; with excellent safety and stability; support continuously working 7×24 hours;
– With 2 button, 1 is for intercom and the other is for alarm; users could conduct various operation via it, such as to communicate with the control center, to trigger SM/Email, to alarm for selected zone, to work with linkage equipment, etc;
– The terminal is built in highly sensitive microphone whose sound collection range is wide and sound reduction is excellent; on one hand, it supports intercom, on the other hand, it also supports public address;
– It’s built in 5W hifi full range speaker, and the sound is clear and loud; and it’s built in 10W amplifier that’s connected with constant impedance speaker directly;
– The protection rating is IP55, and the enclosure is in the material of alumina; with the alarm function for anti-tamper;
– With 2Gbyte SSD; could be managed by remote server; support download in limited bandwidth and auto download in free time to decrease burden of the network; media library supports the function of offline auto playing;
– With 2 network port to support exchange expansion mode and redundant backup mode and the speed is up to 100M;
– Various network access method, including DHCP access, ADSL access, fixed IP address access, etc;
– Built-in 24Bit professional sound card to realize hifi playing, and the audio stream is up to 768 Kpbs;
– With 1 Line input; built in digital preamp; with the function of user-custom priority;
– With 1 monitoring mic to realize multiple function, such as self-detection of the device, working ambient monitoring, attendance checking for duty officer, etc;
– With 1 Line output to be connected with external power amplifier;
– With 2 short input and 2 short output; flexible custom function; could realize short signal collection, alarm trigger, and the linkage with the third-party fire alarm or monitoring system;
– With 1 button to restore factory settings;
– Support electric power and seamlessly switching backup power at DC 24V.

Datasheet

T-7803E IP Intercom Terminal
