PRODUCTS

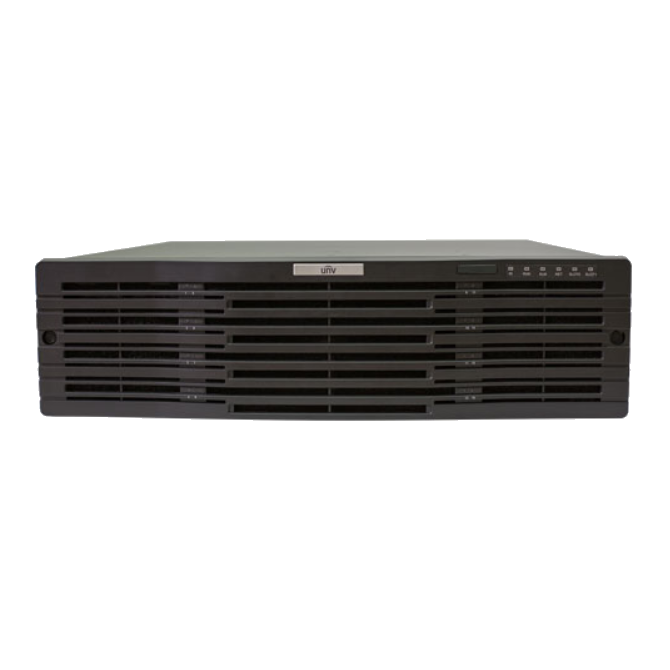

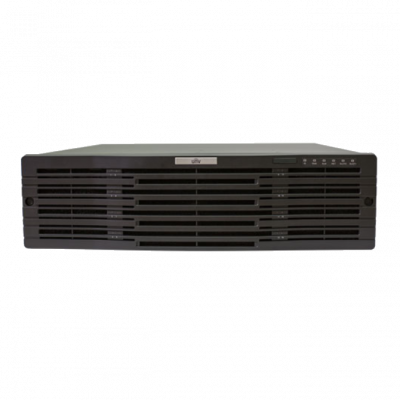

NVR516-64/128 (64/128 Channel 16 HDDs RAID NVR)

• Support Ultra 265/H.265/H.264 video formats
• 64/128-channel input
• Up to 12 Megapixels resolution recording
• 16 SATA HDDs, Up to 10TB for each HDD, Hot-Swap
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare

Description

 Support Ultra 265/H.265/H.264 video formats

 64/128-channel input

 Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

 Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution

 HDMI1, HDMI2 and VGA independent outputs provided

 Up to 12 Megapixels resolution recording

 Redundant power supply optional

 2 decoding cards optional, up to 12-ch HDMI

 Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable

 16 SATA HDDs, up to 10TB for each HDD

 Support 2 miniSAS Interfaces

 Support 12V power output

 ANR technology to enhance the storage reliability when the network is disconnected

 Support cloud upgrade

 Support N+1 Hot spare

Datasheet

NVR516-64128 (64128 Channel 16 HDDs RAID NVR)
